Sloped lots are the ones that catch people out. You buy the house for the view, or for the privacy that comes with sitting above everybody else, and then you go to put in a fence and find the ground drops four feet between one corner of the yard and the other. Panels don’t line up. Gates swing into dirt. There’s a gap under the bottom rail big enough for the dog to walk through without ducking.
That’s usually the point where the conversation stops being about fencing and turns into a grading question. The wall holds the soil, the fence handles privacy and safety, and the two really have to be designed as one thing. Crews that build both, like A & J Fencing, plan a fence retaining wall as a single structure instead of two separate weekend projects. I’ve watched homeowners do it the other way around, and the repair bill is always worse than the original quote.

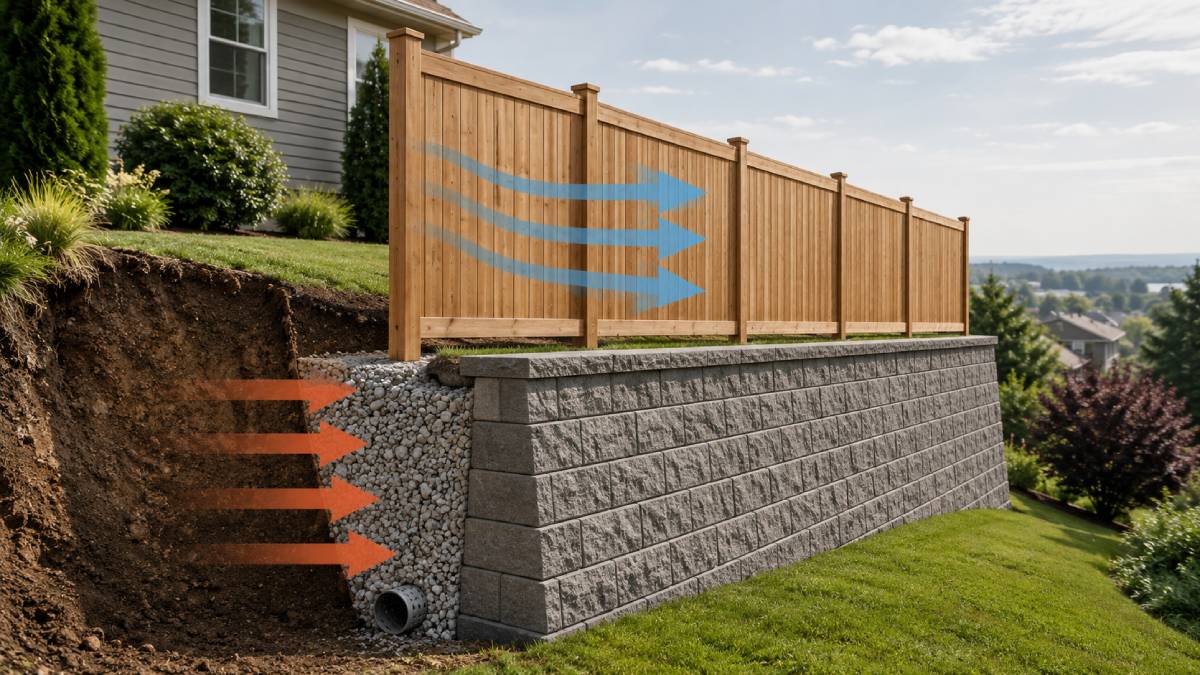

Why the Wall Has to Come First
Soil doesn’t stay where you put it. Left alone, it settles into whatever angle it wants (engineers call that the angle of repose, and for most yard dirt it’s shallower than people expect). A retaining wall interrupts that, holding the higher grade back so you end up with a flat, usable terrace instead of a slope you can’t mow.
It’s structure, not landscaping
Here’s the thing homeowners miss: a retaining wall is carrying real load every single day. Wet soil weighs somewhere around 120 pounds per cubic foot, and it pushes sideways with more force than most people picture. That’s why a wall that looks fine in year one can start leaning in year four. Nothing about the wall changed. The water and the freeze cycles just kept working on it.
A fence on top changes the math
Put a solid privacy fence on top of that wall and you’ve added two problems. The first is dead weight, which is minor. The second is wind, which is not. A six-foot board fence is basically a sail, and every gust transfers a lateral push straight down into the top course of the wall. That’s the load nobody accounts for, and it’s why fence posts set carelessly into wall block are the single most common failure I run into on hillside properties.
Wall Materials and What They Mean for Your Fence
Material choice affects more than looks. It determines how the fence can attach, how tall you can go before an engineer gets involved, and what you’ll be maintaining in fifteen years.
| Wall Material | Typical DIY-Friendly Height | Fence Attachment Method | Upkeep | Rough Installed Cost per Face Sq Ft |
|---|---|---|---|---|
| Pressure treated timber | Up to about 3 ft | Posts run continuous through the wall, tied into deadmen | Reseal every few years, expect 20 to 25 year life | $20 to $35 |
| Segmental block (legacy block) | Up to about 4 ft | Sleeved core or setback posts behind the wall | Very low, occasional weed control in joints | $30 to $55 |
| Poured concrete | Engineered at most heights | Cast-in anchor bolts or embedded sleeves | Low, watch for hairline cracking | $45 to $75 |
| Natural stone or boulder | Varies widely with stone size | Setback posts only, no direct attachment | Low, occasional resetting | $50 to $90+ |
Those numbers move around a lot by region and by how bad the access is. A wall a crew can reach with a skid steer costs meaningfully less than one they have to wheelbarrow to.
Four Ways to Get the Fence Up There
Every attachment method is really answering the same question: how do we keep the fence’s wind load from becoming the wall’s problem?
- Setback posts. The fence sits behind the wall rather than on it, usually by a distance close to the wall’s height. The posts go into undisturbed soil beyond the failure wedge, so the wall never feels the fence at all. Least elegant option, by far the most reliable.
- Sleeved cores. On block systems, hollow cores get lined with a sleeve and the post is set inside with concrete. Works well, but only if the sleeve extends well below the wall base and the manufacturer actually approves it. Plenty don’t.
- Cast-in anchors. For poured concrete, anchor bolts or post bases get set while the pour is wet. Clean result and strong, though you get exactly one chance to place them correctly.
- Continuous posts. Common on timber walls, where the same 6×6 that forms the wall structure keeps going up to become the fence post. Elegant when it’s engineered from the start. A mess when someone tries to add it later.
If a contractor tells you they’ll just surface-mount brackets to the top block and bolt the posts down, get a second opinion. That connection puts every ounce of wind load into the top course, which is the part of the wall with the least to hold it in place.
Drainage Decides How Long Any of This Lasts
I’d guess most failed retaining walls I’ve looked at failed because of water, not because the wall was undersized. Hydrostatic pressure builds behind a wall that can’t drain, and at that point the wall isn’t holding back soil anymore. It’s holding back a reservoir.
What proper backfill looks like
A drainage stack behind the wall means clean angular gravel (not the dirt that came out of the excavation), a perforated pipe at the base sloped to daylight, and filter fabric separating the gravel from the native soil so silt doesn’t clog everything within a few seasons. Weep holes through the face help on block walls. None of this is visible when the job’s done, which is exactly why it’s the first thing a cheap bid quietly leaves out.
Signs it’s already going wrong
Bulging in the middle of the wall face. Block courses that have shifted out of line. Standing water or a soft, spongy patch at the base after rain. Fence posts above the wall that have started tilting outward. Any of those means the wall is telling you something, and waiting rarely makes it cheaper.
Permits, Height Limits, and the Neighbor Conversation
Most jurisdictions want a permit and stamped engineering once a retaining wall passes four feet measured from the bottom of the footing, and many drop that threshold when the wall supports a surcharge (a driveway, a pool, a structure, sometimes a fence). Check locally before you design, not after.
Fence height rules are separate and vary more than you’d think. Some cities measure fence height from the grade the fence sits on, which means a six-foot fence on a four-foot wall is just a six-foot fence. Others measure the whole assembly from the lower grade, and suddenly you’re at ten feet and well over the limit. Two neighboring towns can read this completely differently.
Then there’s the conversation with whoever lives downhill. They’re the one looking at the face of your wall every day, and depending on where the property line falls, they may have a legitimate say in it. Worth having that talk early over the fence line rather than after the excavator shows up.
Frequently Asked Questions
Can you attach a fence directly to the top of a retaining wall?
Sometimes, but it depends entirely on the wall system. Poured concrete walls with cast-in anchors and block systems with approved sleeved cores can handle it. Dry-stacked stone and most surface-mounted bracket setups cannot, because the fence transfers wind load into the least stable part of the wall. When in doubt, setting posts behind the wall in undisturbed soil is always the safer answer.
How tall can a retaining wall be before it needs an engineer?
Four feet is the common trigger in most US jurisdictions, measured from the bottom of the footing to the top of the wall. That threshold often drops lower when the wall carries a surcharge load like a driveway, patio, or fence. Rules vary by city and county, so confirm with your local building department during planning rather than after the design is locked.
Does a fence on a retaining wall count toward the fence height limit?
It depends on how your municipality measures. Some codes measure fence height from the grade the fence is installed on, which keeps the wall out of the calculation entirely. Others measure the combined assembly from the lower grade, which can push you past the allowed height quickly. This is one of the most commonly misread rules in residential fencing, so verify it locally.
What drainage does a retaining wall with a fence need?
The same drainage any retaining wall needs, done properly. That means clean angular gravel backfill, a perforated drain pipe at the base sloped so water exits to daylight, and filter fabric between the gravel and native soil. Weep holes through the wall face help on block systems. Adding a fence doesn’t change the drainage design, but it does raise the cost of failure since the fence goes down with the wall.
Is it cheaper to build one tall wall or two terraced walls?
Two shorter terraced walls are often less expensive than one tall wall, because a single tall wall usually requires engineering, deeper footings, and sometimes geogrid reinforcement extending well back into the slope. Terracing also tends to look softer and gives you planting space between levels. The catch is that terraces need enough horizontal room between them, and on a tight lot you may not have it.
Wrapping Up
The projects that hold up are the ones where somebody thought about the wall and the fence at the same time. Drainage detailed correctly, posts placed where they won’t fight the wall, heights checked against the actual local code instead of what the neighbor did in 2019. None of that is exciting, and none of it shows in the finished photo. It’s just the difference between a yard that still looks good in fifteen years and one that needs to be rebuilt in five.
If you’ve got a slope you’ve been avoiding, start by figuring out how much flat ground you actually want. Everything else, material, height, attachment method, follows from that one number.
